Submitting Messages

Submit SMPP messages through the RouteMobile Messaging Platform and understand how submit responses, encoding, originators, and long messages are handled.

Submission types

Messages can be submitted using either submit_sm or data_sm. Message content can be sent in either the short_message field or the message_payload field.

The message length must not exceed the byte limit for the destination network. For example, GSM networks commonly use a 140-byte message limit.

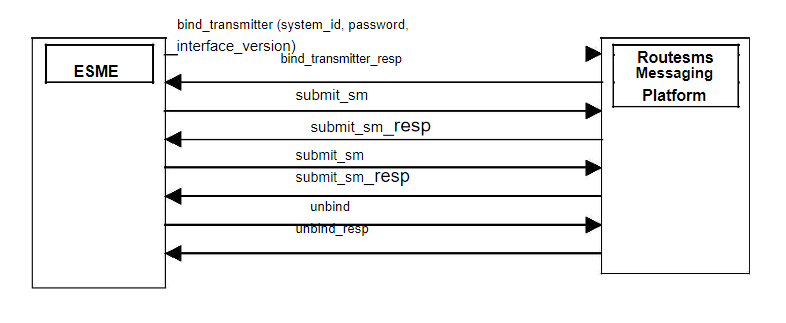

submit_sm

Use this command to submit messages through SMPP.

data_sm

Use this command where applicable for message submission.

short_message

Send message content in the short_message field.

message_payload

Send message content in the message_payload field.

Supported submission options

Submission option	Supported	Notes
`submit_sm`	Yes	Use this command to submit messages through SMPP.
`data_sm`	Yes	Use this command where applicable for message submission.
`short_message`	Yes	Message content can be sent in the `short_message` field.
`message_payload`	Yes	Message content can be sent in the `message_payload` field.
`submit_multi`	No	If the same message must be sent to multiple destinations, submit each message separately.
`sar` optional parameters	No	`sar` optional parameters are not supported.

Concatenated messages are supported using the User Data Header (UDH). The UDH is included in the message size byte limit.

Submit responses

A submit response tells you whether the message submission was accepted or rejected.

Response type	How to identify it	What it means
Positive response	Error code is `0` and the message reference is non-null.	The submit request was accepted.
Negative response	Response contains a RouteMobile vendor-specific error code.	The submit request was rejected or failed validation.

Submit response error codes

Error code	Value	Description
`ESME_ROK`	`0x00000000`	No Error.
`ESME_RINVMSGLEN`	`0x00000001`	Message Length is invalid.
`ESME_RINVCMDLEN`	`0x00000002`	Command Length is invalid.
`ESME_RINVCMDID`	`0x00000003`	Invalid Command ID.
`ESME_RINVBNDSTS`	`0x00000004`	Incorrect BIND Status for given command.
`ESME_RALYBND`	`0x00000005`	ESME Already in Bound State.
`ESME_RINVPRTFLG`	`0x00000006`	Invalid Priority Flag.
`ESME_RINVREGDLVFLG`	`0x00000007`	Invalid Registered Delivery Flag.
`ESME_RSYSERR`	`0x00000008`	System Error.
`ESME_RINVSRCADR`	`0x0000000A`	Invalid Source Address.
`ESME_RINVDSTADR`	`0x0000000B`	Invalid Dest Addr.
`ESME_RINVMSGID`	`0x0000000C`	Message ID is invalid.
`ESME_RBINDFAIL`	`0x0000000D`	Bind Failed.
`ESME_RINVPASWD`	`0x0000000E`	Invalid Password.
`ESME_RINVSYSID`	`0x0000000F`	Invalid System ID.
`ESME_RINVSERTYP`	`0x00000015`	Invalid Service Type.
`ESME_RINVESMCLASS`	`0x00000043`	Invalid `esm_class` field data.
`ESME_RSUBMITFAIL`	`0x00000045`	`submit_sm` failed.
`ESME_RINVSRCTON`	`0x00000048`	Invalid Source address TON.
`ESME_RINVSRCNPI`	`0x00000049`	Invalid Source address NPI.
`ESME_RINVDSTTON`	`0x00000050`	Invalid Destination address TON.
`ESME_RINVDSTNPI`	`0x00000051`	Invalid Destination address NPI.
`ESME_RINVSYSTYP`	`0x00000053`	Invalid `system_type` field.
`ESME_RTHROTTLED`	`0x00000058`	Throttling Error. ESME has exceeded allowed message limits.
`ESME_RINVEXPIRY`	`0x00000062`	Invalid message validity period, also known as expiry time.
`ESME_RINVOPTPARSTREAM`	`0x000000C0`	Error in the optional part of the PDU Body.
`ESME_ROPTPARNOTALLWD`	`0x000000C1`	Optional Parameter not allowed.
`ESME_RINVPARLEN`	`0x000000C2`	Invalid Parameter Length.
`ESME_RMISSINGOPTPARAM`	`0x000000C3`	Expected Optional Parameter missing.
`ESME_RINVOPTPARAMVAL`	`0x000000C4`	Invalid Optional Parameter Value.
`ESME_RDELIVERYFAILURE`	`0x000000FE`	Delivery Failure, used for `data_sm_resp`.
`ESME_CREDIT_ERROR`	`0x00000401`	Credits are over.
`ESME_SPAM_MESSAGE`	`0x00000404`	Spam content.
`ESME_RINVSMLEN`	`0x00000405`	Message length is exceeding in `short_sm`, for example, for message type text max message length is 160 characters.
`ESME_RINVUDHLEN`	`0x00000406`	Invalid UDH length indicator. Currently, 05 and 06 are allowed with all data coding types, and 0b is allowed with data coding 245.
`ESME_RINSMSEMPTY`	`0x00000407`	Message body not found in either `short_sm` or `message_payload`.
`ESME_RINDSTDND`	`0x00000408`	Destination in DND.
`ESME_RINSRCMSG`	`0x00000409`	Invalid source/template.
`ESME_RINSRCMSG`	`0x00000410`	Source/Template long message error code.
`ESME_RINSRCMSG`	`0x00000411`	Duplicate Submission.
`ESME_RINSRCMSG`	`0x00000412`	Destination Barred/Source Barred.

Character sets, class, and data coding

The RouteMobile Messaging Platform supports GSM 03.38 encoding and Latin 1 (ISO-8859-1) encoding. The default character set is GSM 03.38.

Message type or encoding	`data_coding` value	Notes
GSM 03.38	`0`	Use for GSM 03.38 encoded messages. This is the default character set.
GSM 03.38 with `data_coding=1`	`1`	Supported, but not recommended because it is known to cause character encoding issues.
Latin 1 / ISO-8859-1	`3`	Use only if explicitly instructed to send ISO-8859-1 encoded messages.
Unicode	`8`	Message content must be sent in UTF-16 Big Endian format.

Do not use data_coding=1 unless required. Use data_coding=0 for GSM 03.38 and data_coding=8 for Unicode messages.

Originators and destination numbers

The default originator type is a full International MSISDN. Alphanumeric or network short code originators can be sent by using the following source_addr_ton values.

Originator type	`source_addr_ton` value
Alpha-numeric	`5`
National / Network Short Code	`3`
International MSISDN	`1`

Destination address types are not supported. They can be set to any value, but they are always interpreted as 1.

Send all destination numbers in international format without the leading 00.

Long messages

Long messages exceed the normal short message length limit: 160 characters for text and 70 characters for Unicode.

You can send long messages using either concatenated messages or message_payload.

Method	How it works	Required setup	Limit or behavior
Concatenated Messages	The long message is split into multiple short messages and joined on the mobile device if supported.	Include the UDH in the `short_message` field and set `esm_class` in the `submit_sm` PDU to `0x43` for Store and Forward with UDHI.	If the mobile device does not support long messages, each message part may be displayed separately.
Message Payload	The message is sent using the optional `message_payload` field of the `submit_sm` PDU.	Set `interface_version` to `0x34`.	Supports messages up to 64K octets. If `interface_version` is not set to `0x34`, this field is not available.
